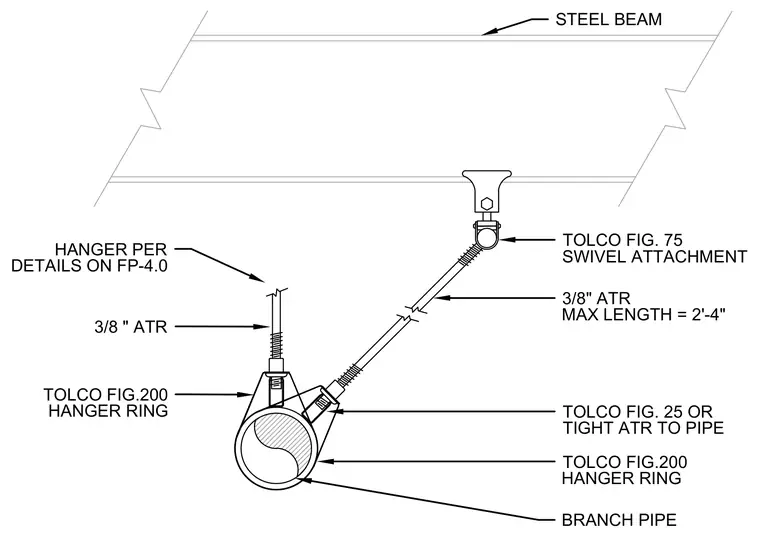

A branch pipe is suspended from a structural steel beam using a Tolco Fig. 200 hanger ring and a 3/8-inch adjustable threaded rod. Lateral stability is provided by a sway brace assembly consisting of a Tolco Fig. 75 swivel attachment connected to the beam and a 3/8-inch adjustable threaded rod with a maximum length of two feet four inches attached to the pipe with a Tolco Fig. 25 or tight threaded rod connector.
TOLCO FIG. 75 SWIVEL ATTACHMENT 3/8" ATR MAX LENGTH = 2'-4" TOLCO FIG. 25 OR TIGHT ATR TO PIPE TOLCO FIG.200 HANGER RING BRANCH PIPE TOLCO FIG.200 HANGER RING 3/8 " ATR HANGER PER DETAILS ON FP-4.0 STEEL BEAM
