An existing wide-flange beam supports a hollow structural section column located per plan near the edge of a concrete over metal deck floor. An L5x5x1/2 angle is secured with expansion anchors to the underside of the deck. The angle and its orientation are positioned to install expansion on the deck low flute per the ICC-ESR report.

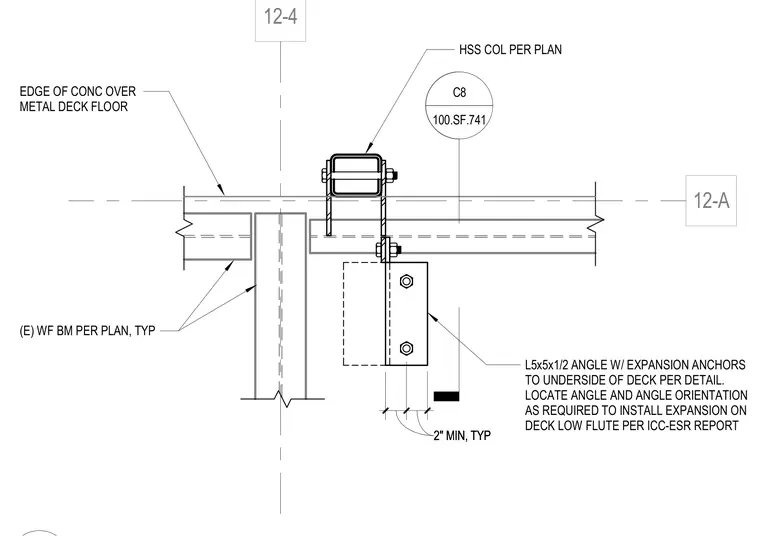

12-4 12-A 2" MIN, TYP 2" MIN, TYP (E) WF BM PER PLAN, TYP HSS COL PER PLAN EDGE OF CONC OVER METAL DECK FLOOR L5x5x1/2 ANGLE W/ EXPANSION ANCHORS TO UNDERSIDE OF DECK PER DETAIL. LOCATE ANGLE AND ANGLE ORIENTATION AS REQUIRED TO INSTALL EXPANSION ON DECK LOW FLUTE PER ICC-ESR REPORT C8 100.SF.741
