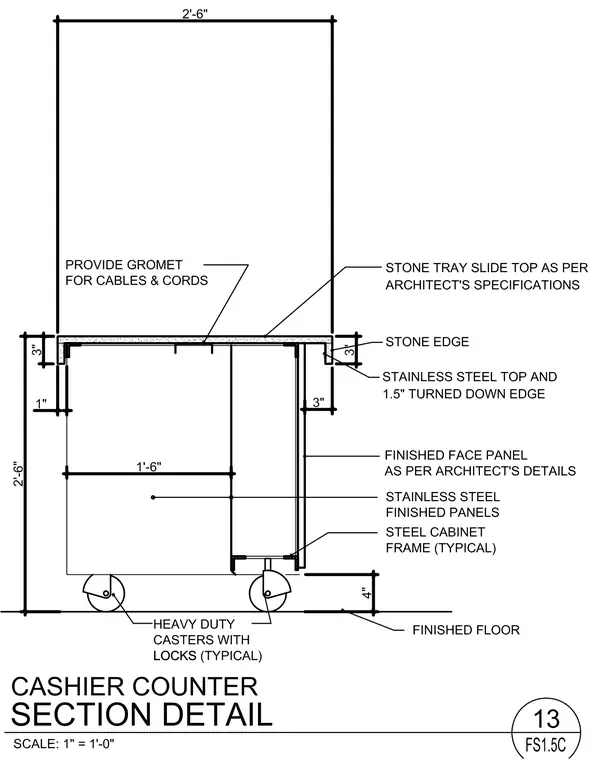

A custom cashier counter assembly features a steel cabinet frame mounted on heavy duty casters with locks. The unit includes stainless steel finished panels on the exterior face and a stainless steel top with a 1.5-inch turned down edge. A stone tray slide top is provided per the architect's specifications, complete with a stone edge and integrated wire management grommets for cables and cords. Overall dimensions show a counter width of 2 feet 6 inches and a total height of 2 feet 6 inches above the finished floor, with a 4-inch toe space clearance.
