A low level fuel tank switch is mounted on the top of the fuel tank adjacent to a fuel gage and two-inch vent stacks. The vent stacks are piped to the atmosphere at a minimum of eleven feet above the top of the fuel tank elevation and fitted with a spark arrester. A one-half inch fuel line runs from the engine, with the fuel supply line installed at or above the center line of the fuel transfer pump on the diesel engine. A one-inch tank drain is provided with the tank pitched one-quarter inch per foot towards the drain.

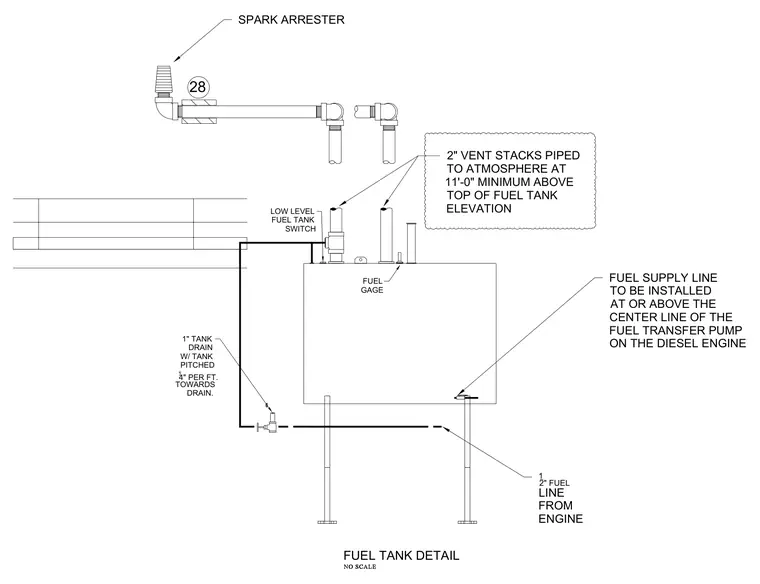

SPARK ARRESTER 28 LOW LEVEL FUEL TANK SWITCH FUEL GAGE 1" TANK DRAIN W/ TANK PITCHED 1 4" PER FT. TOWARDS DRAIN. 1 2" FUEL LINE FROM ENGINE FUEL TANK DETAIL FUEL SUPPLY LINE TO BE INSTALLED AT OR ABOVE THE CENTER LINE OF THE FUEL TRANSFER PUMP ON THE DIESEL ENGINE 2" VENT STACKS PIPED TO ATMOSPHERE AT 11'-0" MINIMUM ABOVE TOP OF FUEL TANK ELEVATION
