Interface wiring connects a fire alarm addressable signaling link circuit to elevator controllers. Relay modules provide contact closures connecting to primary elevator recall, alternate elevator recall, and firefighter warning functions at the elevator controller. An additional relay module provides a battery backup system disable signal. All connections require coordination with the elevator contractor for proper controller integration.

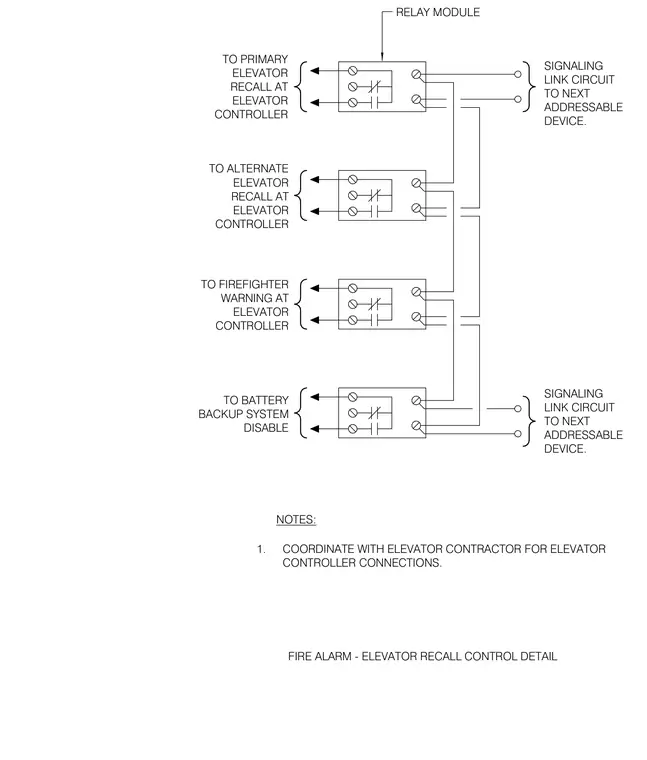

TO PRIMARY ELEVATOR RECALL AT ELEVATOR CONTROLLER TO ALTERNATE ELEVATOR RECALL AT ELEVATOR CONTROLLER TO FIREFIGHTER WARNING AT ELEVATOR CONTROLLER TO BATTERY BACKUP SYSTEM DISABLE RELAY MODULE SIGNALING LINK CIRCUIT TO NEXT ADDRESSABLE DEVICE. 1. NOTES: COORDINATE WITH ELEVATOR CONTRACTOR FOR ELEVATOR CONTROLLER CONNECTIONS. FIRE ALARM - ELEVATOR RECALL CONTROL DETAIL SIGNALING LINK CIRCUIT TO NEXT ADDRESSABLE DEVICE.
