Inspector's Test Connection

Elements

About this detail

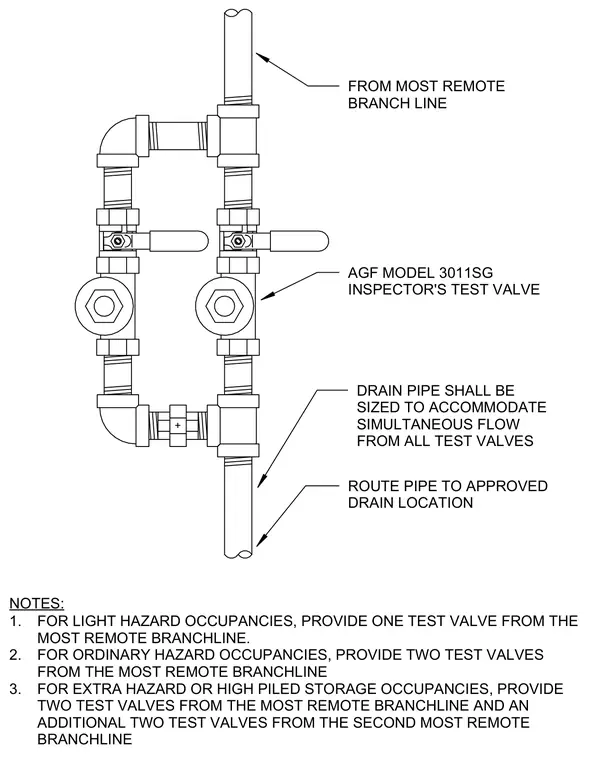

An AGF Model 3011SG inspector's test valve connects to the most remote branch line and routes to an approved drain location. The drain pipe sizing accommodates simultaneous flow from all test valves. Light hazard occupancies require one test valve from the most remote branch line, while ordinary hazard occupancies require two test valves. Extra hazard or high piled storage occupancies require two test valves from the most remote branch line and an additional two test valves from the second most remote branch line.
