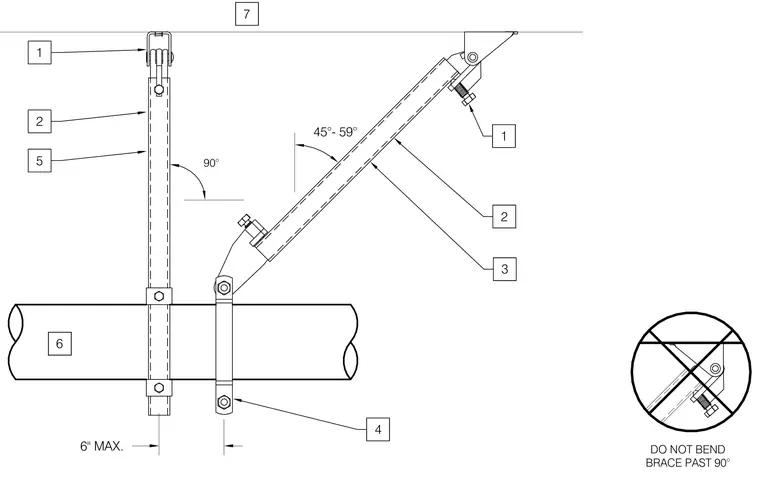

Seismic restraint assembly for fire sprinkler piping featuring a vertical hanger and an inclined lateral brace connected to the structural overhead. The vertical hanger secures the pipe at a ninety-degree angle, while the diagonal brace is installed within an angle range of forty-five to fifty-nine degrees. Fasteners and hardware secure the braces to the pipe clamps and structural attachments. A warning note indicates not to bend the brace past ninety degrees.
6" MAX. 4 3 2 1 1 2 5 45°- 59° 90° 6 7 DO NOT BEND BRACE PAST 90°
