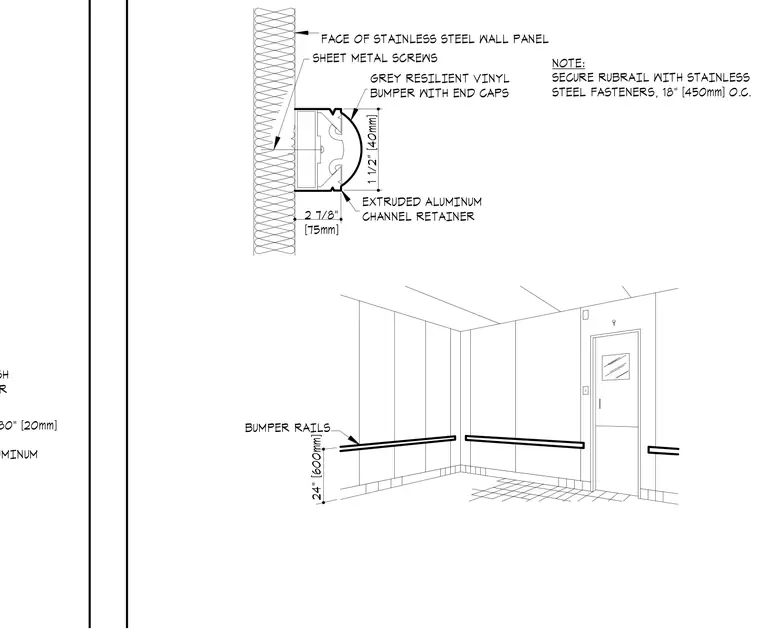

A grey resilient vinyl bumper with end caps clips onto an extruded aluminum channel retainer, which is secured to the face of a stainless steel wall panel using sheet metal screws spaced eighteen inches on center. The bumper rail stands two and seven-eighths inches from the wall surface with an overall height of one and one-half inches. The installation sits twenty-four inches above the finish floor.
EXTRUDED ALUMINUM CHANNEL RETAINER SHEET METAL SCREWS BUMPER RAILS 24" [600mm] 2 7/8" [75mm] FACE OF STAINLESS STEEL WALL PANEL GREY RESILIENT VINYL BUMPER WITH END CAPS 1 1/2" [40mm] NOTE: SECURE RUBRAIL WITH STAINLESS STEEL FASTENERS, 18" [450mm] O.C. FINISH FLOOR 3/4" [20mm] x.080" [20mm] FLATTENED ALUMINUM
