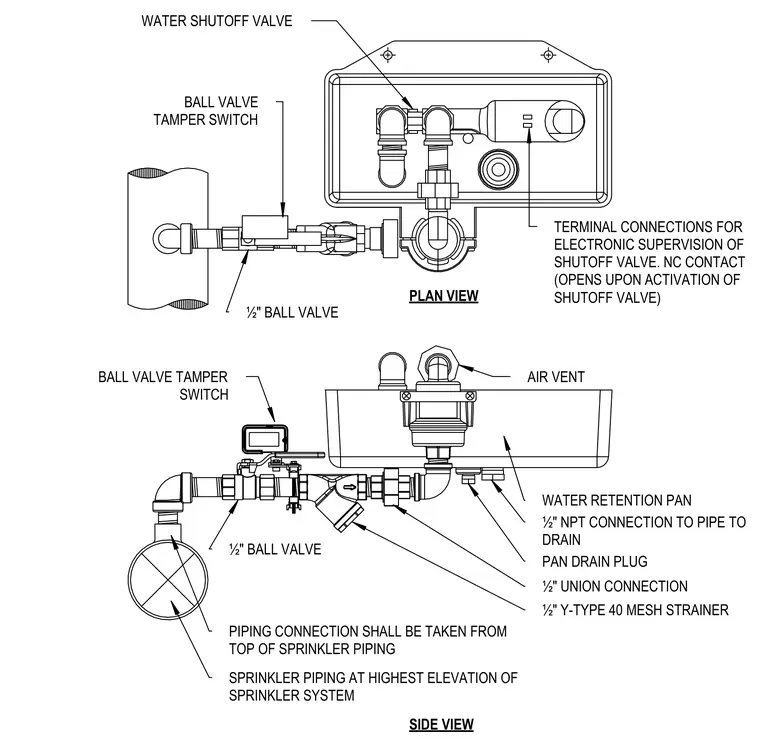

An automatic air relief valve assembly connects to the top of the sprinkler piping at the highest elevation of the sprinkler system. The piping runs through a one-half inch ball valve with a tamper switch for electronic supervision of the shutoff valve via normally closed contacts. A one-half inch Y-type forty mesh strainer, union connection, and air vent complete the inline components above a water retention pan equipped with a pan drain plug and a one-half inch national pipe thread connection to a drain pipe.
TERMINAL CONNECTIONS FOR ELECTRONIC SUPERVISION OF SHUTOFF VALVE. NC CONTACT (OPENS UPON ACTIVATION OF SHUTOFF VALVE) WATER SHUTOFF VALVE BALL VALVE TAMPER SWITCH ½" BALL VALVE PLAN VIEW SIDE VIEW AIR VENT BALL VALVE TAMPER SWITCH ½" BALL VALVE PIPING CONNECTION SHALL BE TAKEN FROM TOP OF SPRINKLER PIPING SPRINKLER PIPING AT HIGHEST ELEVATION OF SPRINKLER SYSTEM WATER RETENTION PAN ½" NPT CONNECTION TO PIPE TO DRAIN PAN DRAIN PLUG ½" UNION CONNECTION ½" Y-TYPE 40 MESH STRAINER
