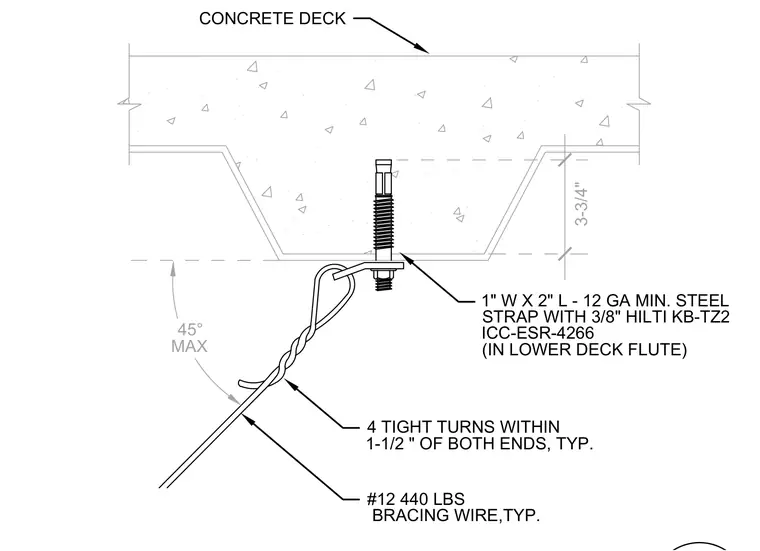

A twelve-gauge minimum steel strap measuring one inch wide by two inches long secures to the concrete deck using a three-eighth-inch Hilti KB-TZ2 anchor placed within the lower deck flute. A number twelve bracing wire with a capacity of four hundred forty pounds attaches through the steel strap, featuring four tight turns within one and one-half inches of both ends. The bracing wire extends at a maximum angle of forty-five degrees from the anchor point.
CONCRETE DECK #12 440 LBS BRACING WIRE,TYP. 4 TIGHT TURNS WITHIN 1-1/2 " OF BOTH ENDS, TYP. 1" W X 2" L - 12 GA MIN. STEEL STRAP WITH 3/8" HILTI KB-TZ2 ICC-ESR-4266 (IN LOWER DECK FLUTE) 45° MAX 3-3/4"
