Electrical · F-MATDE

Freezer Door Fan Switch

Materials

Steel Stainless Steel

Elements

Doors Connections / Plates Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

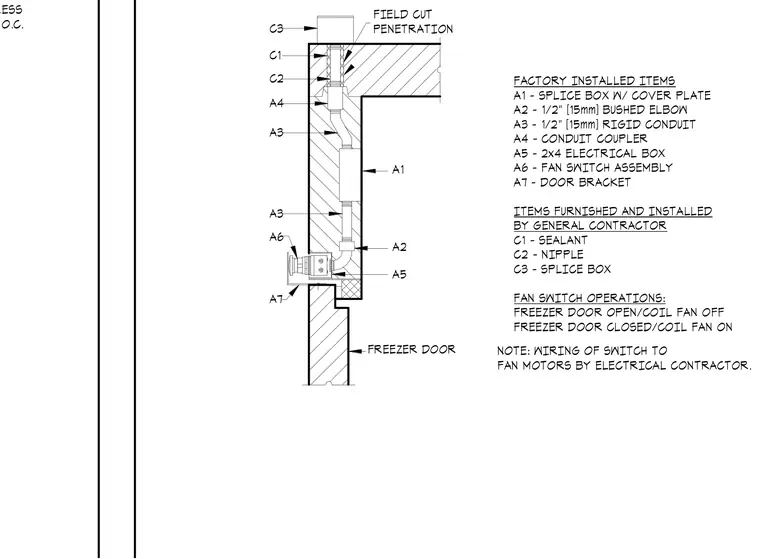

Installation of a freezer door fan switch assembly comprising factory-installed items including a splice box with cover plate, a 1/2-inch bushed elbow, rigid conduit, a conduit coupler, a 2x4 electrical box, a fan switch assembly, and a door bracket. General contractor-furnished items comprise sealant, a nipple, and a splice box at the field-cut penetration. Wiring of the switch to the fan motors is completed by the electrical contractor. The fan switch operates to turn the coil fan off when the freezer door is open and on when the freezer door is closed.
