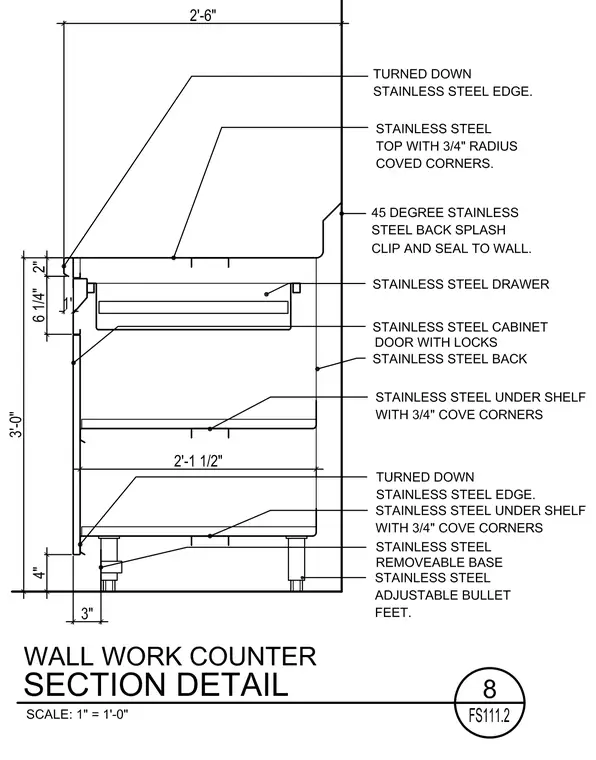

This wall work counter section detail features a stainless steel top with a three-quarter-inch radius coved corner, a turned-down stainless steel edge, and a forty-five-degree stainless steel backsplash clipped and sealed to the wall. The assembly includes a stainless steel drawer and a stainless steel cabinet door with locks mounted on a stainless steel back. Lower storage consists of stainless steel under shelves with three-quarter-inch cove corners. The base is supported by a stainless steel removable base with stainless steel adjustable bullet feet.
