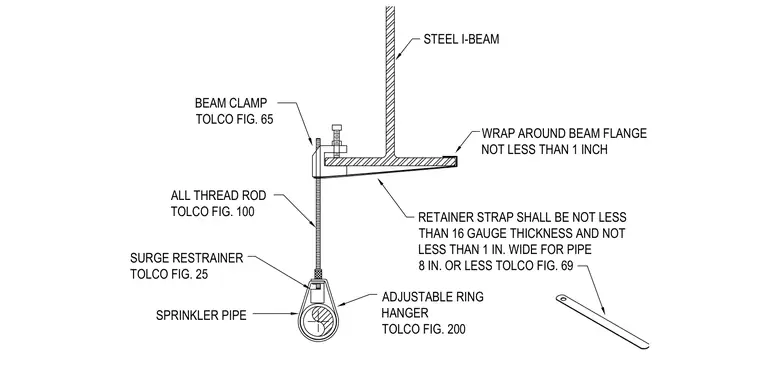

Sprinkler pipe hangs below a steel I-beam supported by a Tolco Fig. 65 beam clamp secured with a retainer strap wrapped at least one inch around the beam flange. The retainer strap is formed from at least 16 gauge steel and is one inch wide for pipes eight inches or smaller. A Tolco Fig. 100 all-thread rod connects the beam clamp to a Tolco Fig. 200 adjustable ring hanger holding the sprinkler pipe. A Tolco Fig. 25 surge restrainer is attached at the hanger to control pipe movement.
ADJUSTABLE RING HANGER TOLCO FIG. 200 STEEL I-BEAM ALL THREAD ROD TOLCO FIG. 100 WRAP AROUND BEAM FLANGE NOT LESS THAN 1 INCH RETAINER STRAP SHALL BE NOT LESS THAN 16 GAUGE THICKNESS AND NOT LESS THAN 1 IN. WIDE FOR PIPE 8 IN. OR LESS TOLCO FIG. 69 SPRINKLER PIPE SURGE RESTRAINER TOLCO FIG. 25 BEAM CLAMP TOLCO FIG. 65
