Fire Protection System Riser Diagram for Dirty Corridor

About this detail

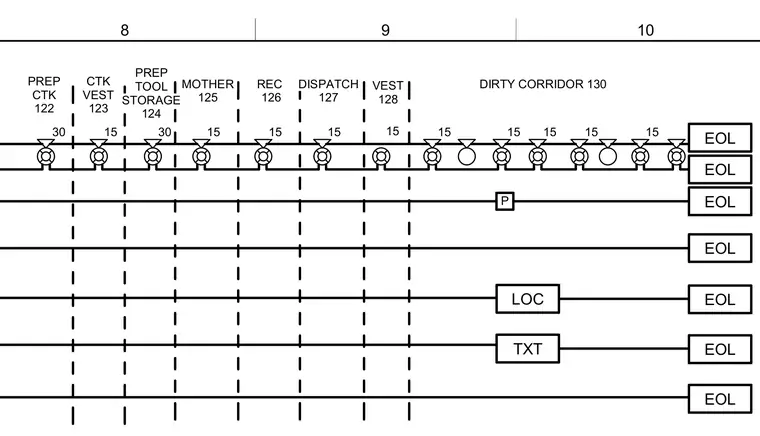

A fire protection system riser diagram mapping device drops, flow switches, and end-of-line terminations across Dirty Corridor 130 and adjacent spaces including Prep CTK 122, CTK Vest 123, Prep Tool Storage 124, Mother 125, Rec 126, Dispatch 127, and Vest 128. Branch lines connect sprinkler heads and monitoring devices with indicated spacing dimensions. End-of-line markers and control nodes terminate the circuit runs.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
