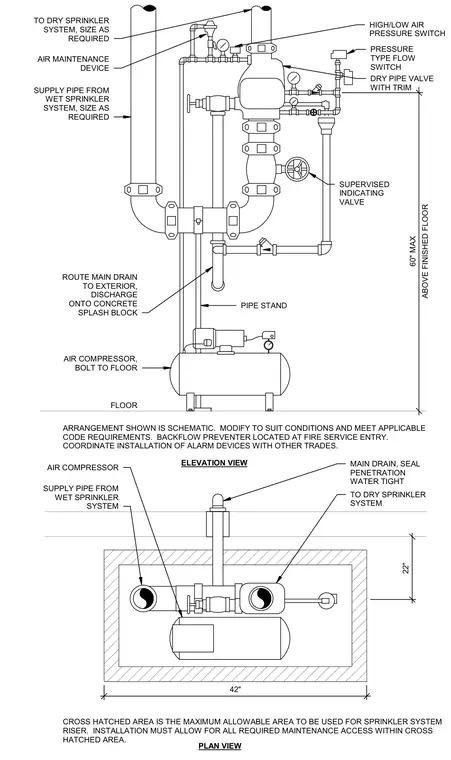

A dry pipe fire sprinkler system riser assembly comprises plan and elevation views. The elevation view details the dry pipe valve with trim, a supervised indicating valve, a pressure type flow switch, a high/low air pressure switch, an air maintenance device, and a floor-mounted air compressor. Piping connects the supply from the wet sprinkler system to the dry system, with a main drain routed to the exterior and discharged onto a concrete splash block. The floor-mounted air compressor is secured to the floor, and a maximum height of sixty inches above the finished floor is designated for key components. The plan view shows the maximum allowable cross-hatched area to be used for the sprinkler system riser, maintaining required maintenance access.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
