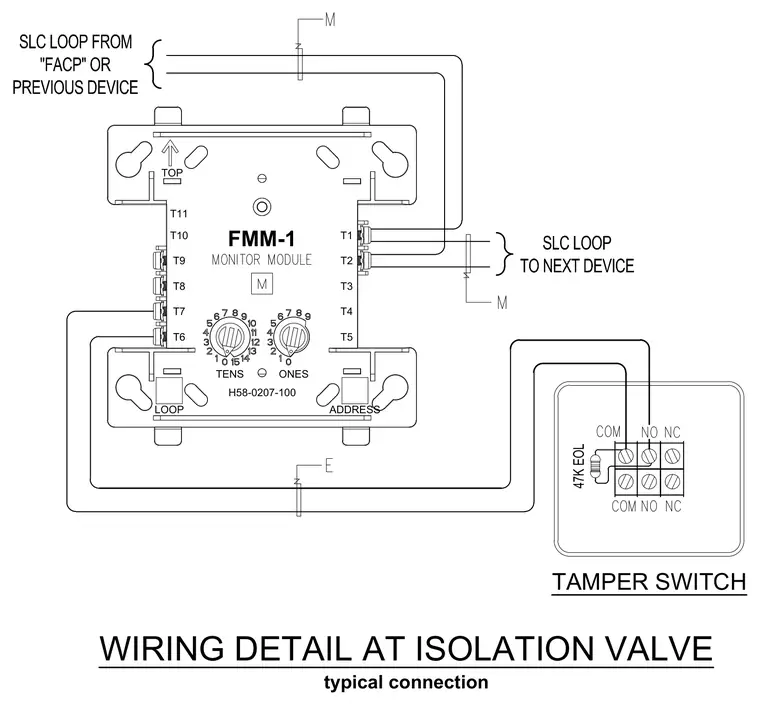

An FMM-1 monitor module connects to a signaling line circuit loop from a fire alarm control panel or previous device at terminals T1 and T2, continuing to the next device from terminals T3 and T4. A tamper switch connects to terminals T6 and T7 on the monitor module with a 47k end-of-line resistor wired across the common and normally closed terminals. The module address is set using the rotary dials for tens and ones.
FMM-1 T11 T9 T8 T7 T6 T10 T1 T2 T3 T4 T5 LOOP ADDRESS H58-0207-100 TENS ONES TOP WIRING DETAIL AT ISOLATION VALVE typical connection SLC LOOP TO NEXT DEVICE SLC LOOP FROM "FACP" OR PREVIOUS DEVICE 47K EOL TAMPER SWITCH
