A double tank Ansul R-102 fire suppression system is housed in a stainless steel cabinet provided by Gaylord. Two three-gallon tanks connect to wet chemical and detection lines routed to the ventilator by the fire protection contractor. A mechanical nitrogen cartridge Automan system integrates with an electrical metallic tubing conduit running to a remote pull station and optionally to a mechanical gas valve.

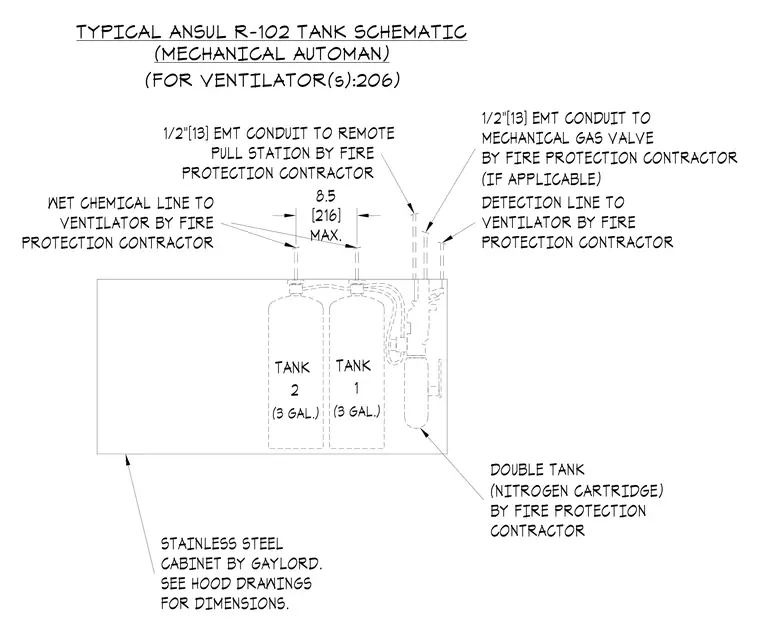

TANK 1 (3 GAL.) (3 GAL.) TANK 2 8.5 [216] MAX. STAINLESS STEEL CABINET BY GAYLORD. SEE HOOD DRAWINGS FOR DIMENSIONS. DOUBLE TANK (NITROGEN CARTRIDGE) BY FIRE PROTECTION CONTRACTOR DETECTION LINE TO VENTILATOR BY FIRE PROTECTION CONTRACTOR 1/2"[13] EMT CONDUIT TO MECHANICAL GAS VALVE BY FIRE PROTECTION CONTRACTOR (IF APPLICABLE) 1/2"[13] EMT CONDUIT TO REMOTE PULL STATION BY FIRE PROTECTION CONTRACTOR WET CHEMICAL LINE TO VENTILATOR BY FIRE PROTECTION CONTRACTOR (FOR VENTILATOR(s):206) TYPICAL ANSUL R-102 TANK SCHEMATIC (MECHANICAL AUTOMAN)
