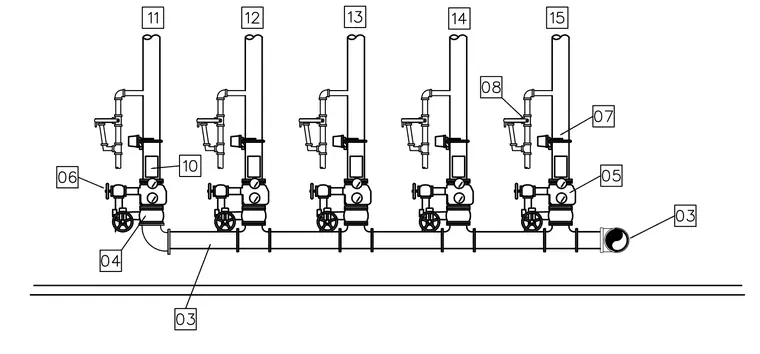

A series of vertical fire protection riser lines connect to a shared horizontal main piping manifold with control valves, gauges, and accessory assemblies. Numbered callout tags identify the individual riser lines and system components.
