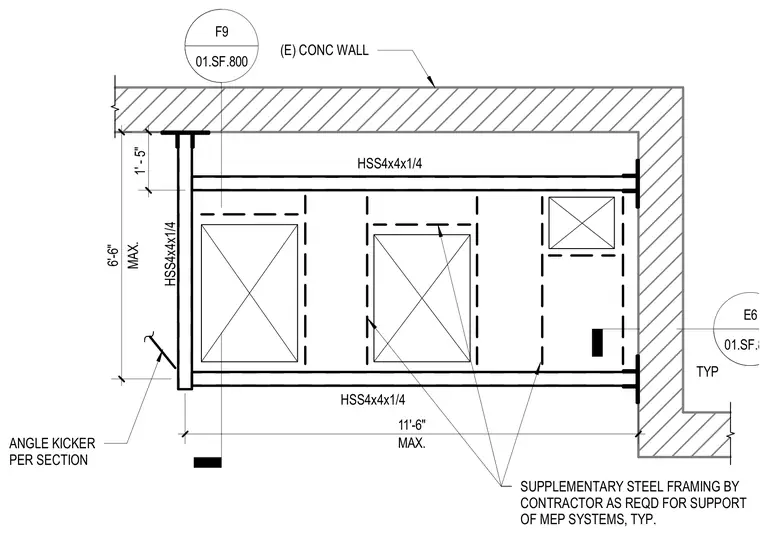

Supplementary steel framing for the support of exterior mechanical, electrical, and plumbing systems is anchored to an existing concrete wall. The assembly utilizes hollow structural section members, specifically HSS 4x4x1/4 profiles, configured with an angle kicker per section. Spacing and dimensions reach a maximum height of six feet six inches and a maximum span of eleven feet six inches.
(E) CONC WALL MAX. 6'-6" MAX. 11'-6" F9 01.SF.800 E6 01.SF.800 TYP HSS4x4x1/4 HSS4x4x1/4 HSS4x4x1/4 ANGLE KICKER PER SECTION SUPPLEMENTARY STEEL FRAMING BY CONTRACTOR AS REQD FOR SUPPORT OF MEP SYSTEMS, TYP. 1' - 5"
