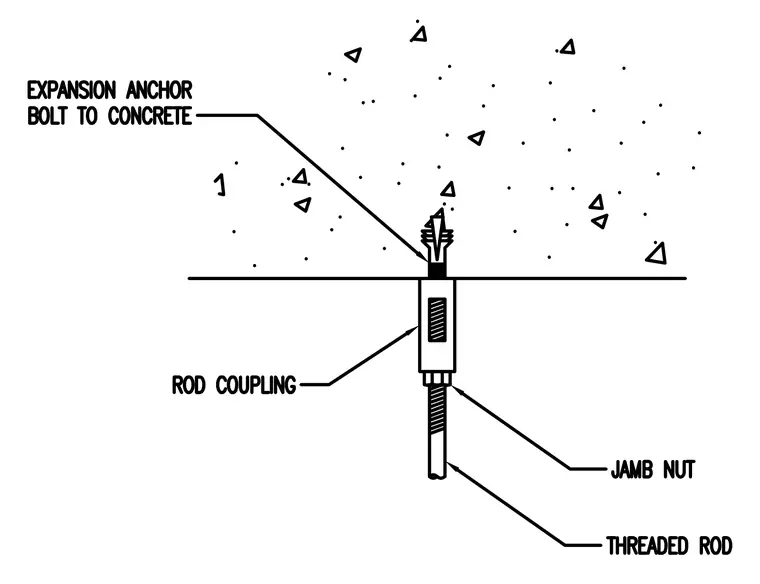

An expansion anchor bolt is set into concrete to secure a suspended threaded rod. A rod coupling joins the anchor bolt to the threaded rod, secured in place with a jamb nut.
