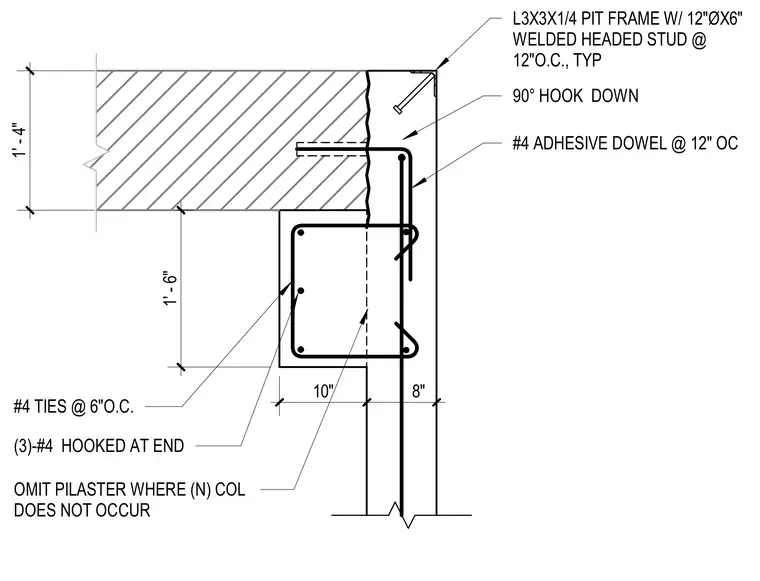

A concrete column and loading dock pit edge reinforced with #4 adhesive dowels spaced at 12 inches on center. The pit frame consists of an L3x3x1/4 angle with 1/2-inch diameter by 6-inch welded headed studs spaced at 12 inches on center typically. Three #4 hooked longitudinal bars are placed at the end with a 90-degree downward hook and #4 ties spaced at 6 inches on center. The pilaster is omitted where the new column does not occur.
10" 8" 1' - 4" L3X3X1/4 PIT FRAME W/ 12"ØX6" WELDED HEADED STUD @ 12"O.C., TYP 90° HOOK DOWN 1' - 6" (3)-#4 HOOKED AT END #4 TIES @ 6"O.C. OMIT PILASTER WHERE (N) COL DOES NOT OCCUR #4 ADHESIVE DOWEL @ 12" OC
