An HSS8x8x3/8 hollow structural section column is welded to a 1/2-inch thick by 1'-2" square steel base plate with a 5/16-inch fillet weld specified on the flats only. The base plate measures 1'-2" by 1'-2" and is secured by four 3/4-inch diameter ASTM F1554-55 anchor rods arranged in a 10-inch square pattern.

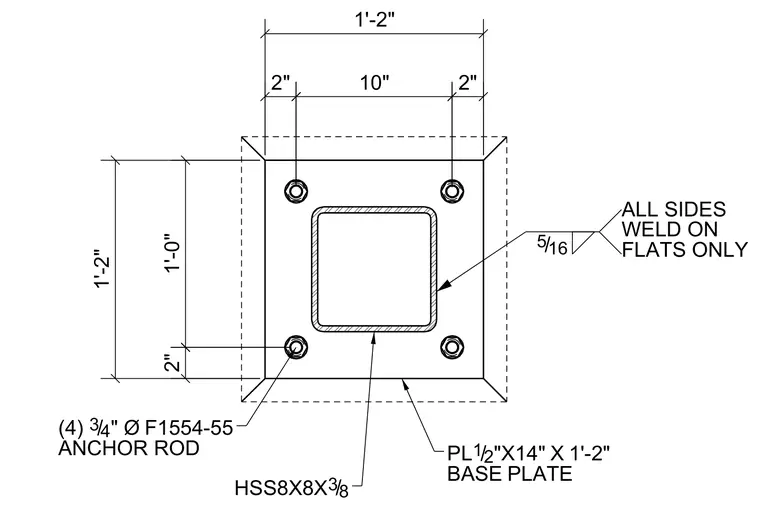

(4) 3 4 / " Ø F1554-55 ANCHOR ROD 2" 1'-0" 2" 10" 2" 1'-2" 1'-2" PL 1 2 / "X14" X 1'-2" BASE PLATE HSS8X8X 3 8 / 516 / ALL SIDES WELD ON FLATS ONLY
