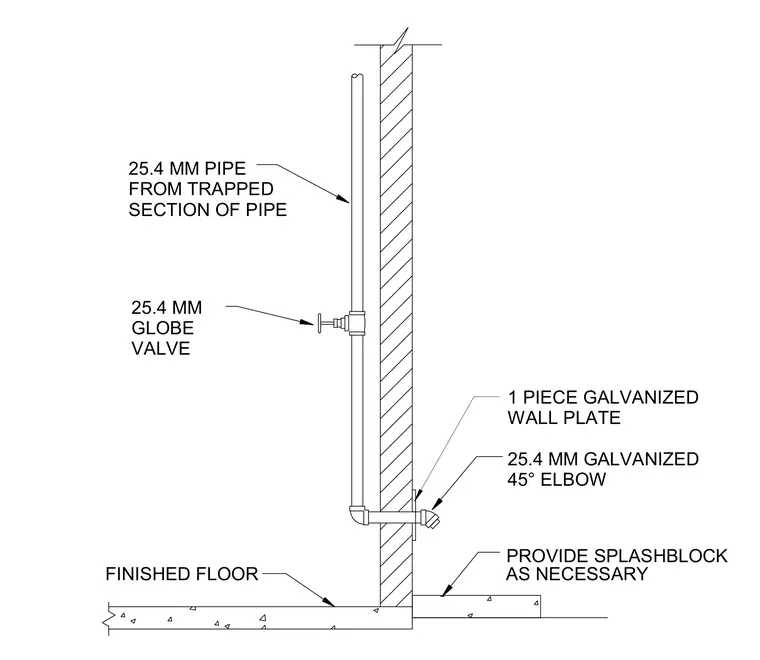

A 25.4 millimeter pipe extends downward from a trapped section of pipe along a wall above the finished floor. The line incorporates a 25.4 millimeter globe valve for manual operation. The pipe turns outward through the wall secured by a one-piece galvanized wall plate. A 25.4 millimeter galvanized 45-degree elbow terminates the line outside above a provided splash block.
25.4 MM GALVANIZED 45° ELBOW 25.4 MM PIPE FROM TRAPPED SECTION OF PIPE 25.4 MM GLOBE VALVE AS NECESSARY PROVIDE SPLASHBLOCK FINISHED FLOOR 1 PIECE GALVANIZED WALL PLATE
