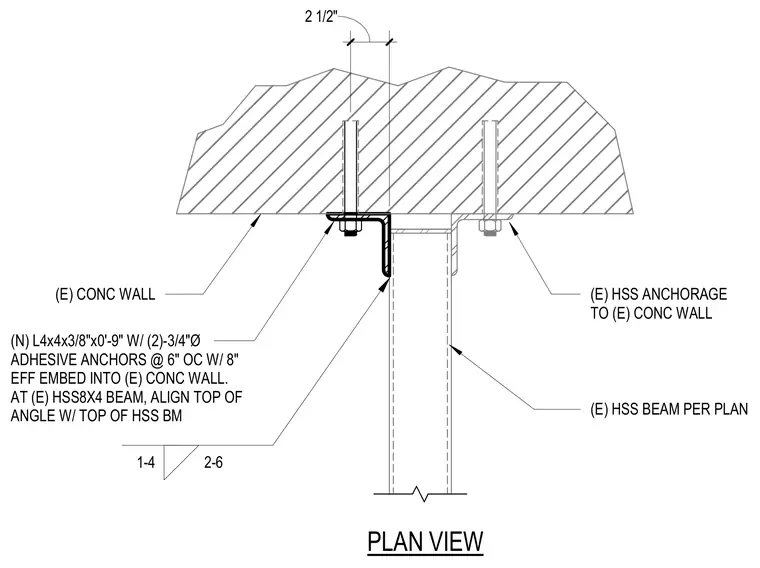

An existing hollow structural section beam connects to an existing concrete wall via a new L4x4x3/8-inch by nine-inch steel angle. The angle is secured to the concrete wall with two three-quarter-inch diameter adhesive anchors spaced at six inches on center with an eight-inch effective embedment. The top of the steel angle aligns with the top of the HSS8x4 beam.
2 1/2" (E) CONC WALL (E) HSS ANCHORAGE TO (E) CONC WALL (N) L4x4x3/8"x0'-9" W/ (2)-3/4"Ø ADHESIVE ANCHORS @ 6" OC W/ 8" EFF EMBED INTO (E) CONC WALL. AT (E) HSS8X4 BEAM, ALIGN TOP OF ANGLE W/ TOP OF HSS BM 1-4 2-6 (E) HSS BEAM PER PLAN PLAN VIEW
