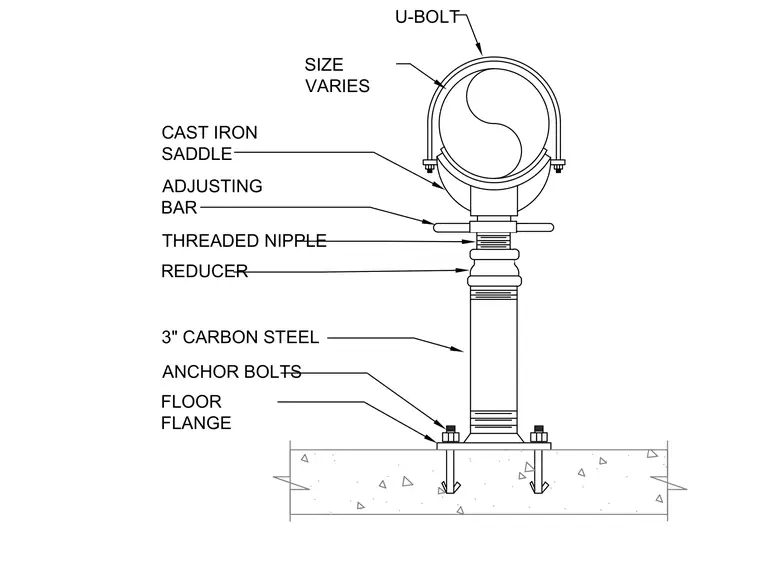

This saddle-type pipe support assembly rests upon a concrete floor slab using a floor flange anchored by carbon steel anchor bolts. A three-inch vertical carbon steel pipe riser connects through a reducer and threaded nipple to an adjustable bar. A cast iron saddle sits atop the assembly to cradle the pipe, secured from above by a U-bolt with variable sizing.
U-BOLT SIZE VARIES CAST IRON SADDLE ADJUSTING BAR THREADED NIPPLE REDUCER 3" CARBON STEEL ANCHOR BOLTS FLOOR FLANGE
