Fire Protection · F-HC9NM

Typical Addressable Loop "Fa"

Elements

About this detail

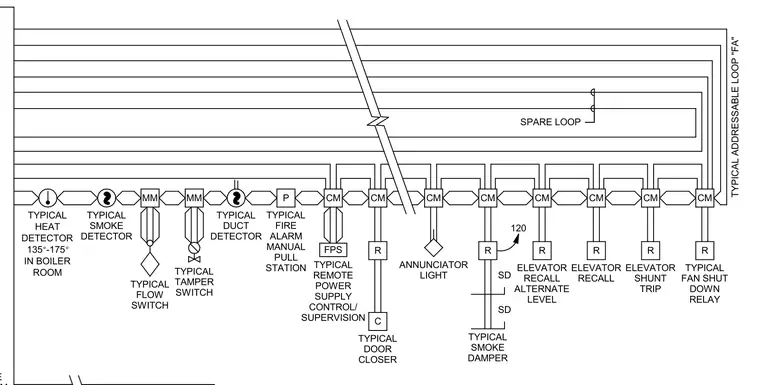

This fire alarm system schematic outlines the typical addressable loop "FA" configuration and connected life safety devices. The circuit includes a typical heat detector rated at 135 to 175 degrees in the boiler room, typical smoke detectors, typical duct detectors, and typical fire alarm manual pull stations. Monitoring modules and control modules interface with field devices such as typical flow switches, typical tamper switches, typical remote power supply control and supervision units, annunciator lights, and typical smoke dampers. Additional relay connections provide elevator recall on alternate levels, standard elevator recall, elevator shunt trips, and typical fan shut down relays along with spare loop capacity.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
