Sprinkler Bell Wiring Detail

Elements

About this detail

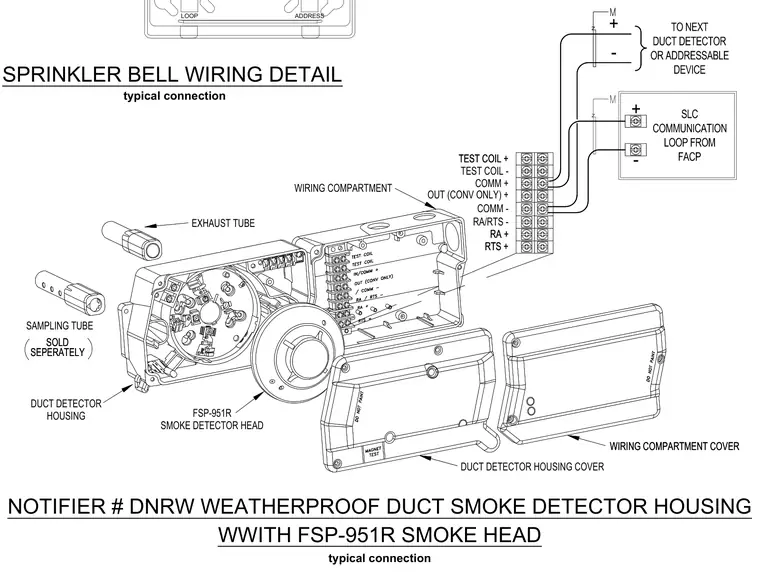

A Notifier DNRW weatherproof duct smoke detector housing paired with an FSP-951R smoke detector head features an internal wiring compartment, sampling tube, and exhaust tube sold separately. Terminal connections accommodate test coil circuits, communication loops from the fire alarm control panel, and remote test stations. Wiring compartment covers enclose the unit after termination.
