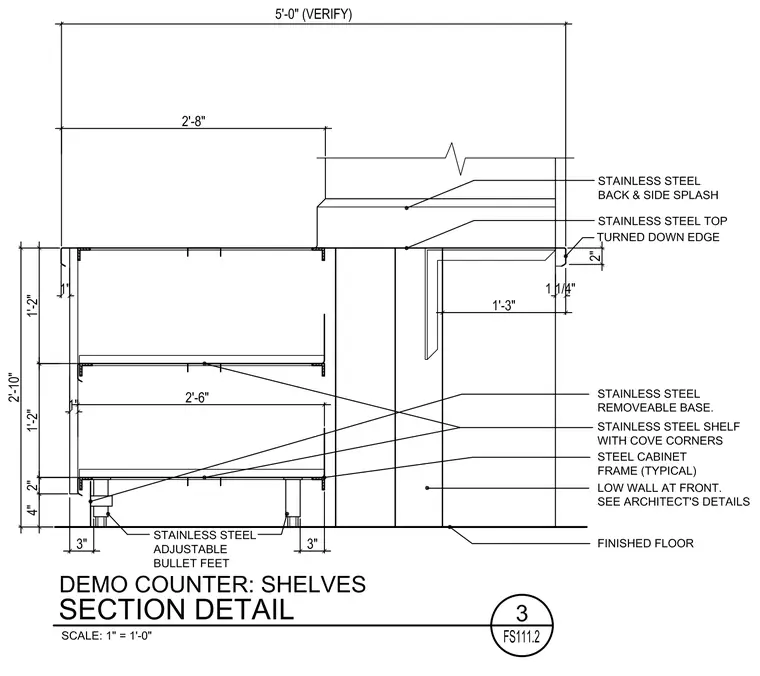

A demonstration counter assembly comprised of a stainless steel top with a turned-down edge, back splash, and side splash. A steel cabinet frame contains stainless steel shelves with cove corners and a removable stainless steel base. The unit rests on stainless steel adjustable bullet feet above the finished floor, positioned adjacent to a low wall at the front.
