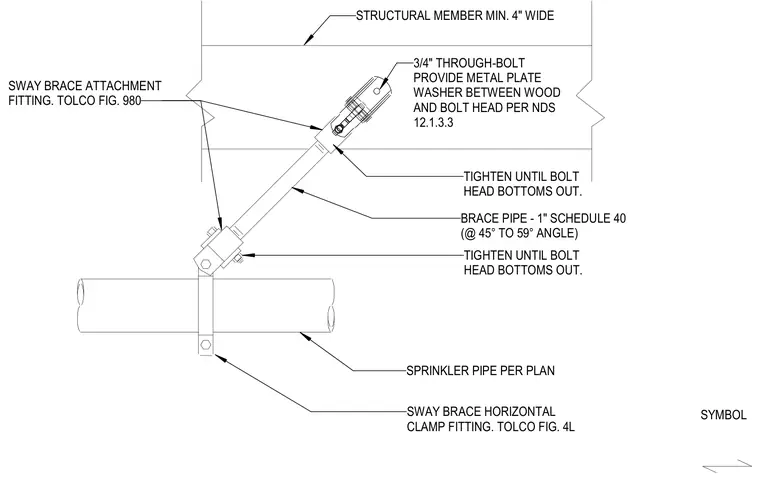

A 1-inch schedule 40 brace pipe is set at a 45 to 59 degree angle to restrain sprinkler piping against longitudinal seismic loads. The brace connects to the sprinkler pipe using a Tolco Fig. 4L sway brace horizontal clamp fitting. The upper end secures to a structural wood member a minimum of 4 inches wide via a Tolco Fig. 980 sway brace attachment fitting and a 3/4-inch through-bolt. A metal plate washer is installed between the wood member and the bolt head in compliance with NDS 12.1.3.3. Clamp and attachment fittings are tightened until the bolt head bottoms out.
SWAY BRACE ATTACHMENT FITTING. TOLCO FIG. 980 SPRINKLER PIPE PER PLAN SWAY BRACE HORIZONTAL CLAMP FITTING. TOLCO FIG. 4L TIGHTEN UNTIL BOLT HEAD BOTTOMS OUT. BRACE PIPE - 1" SCHEDULE 40 (@ 45° TO 59° ANGLE) TIGHTEN UNTIL BOLT HEAD BOTTOMS OUT. SYMBOL STRUCTURAL MEMBER MIN. 4" WIDE 3/4" THROUGH-BOLT PROVIDE METAL PLATE WASHER BETWEEN WOOD AND BOLT HEAD PER NDS 12.1.3.3
