Fire Protection · F-GNXZ5

Elevator Recall and Control Diagram

Materials

Elements

About this detail

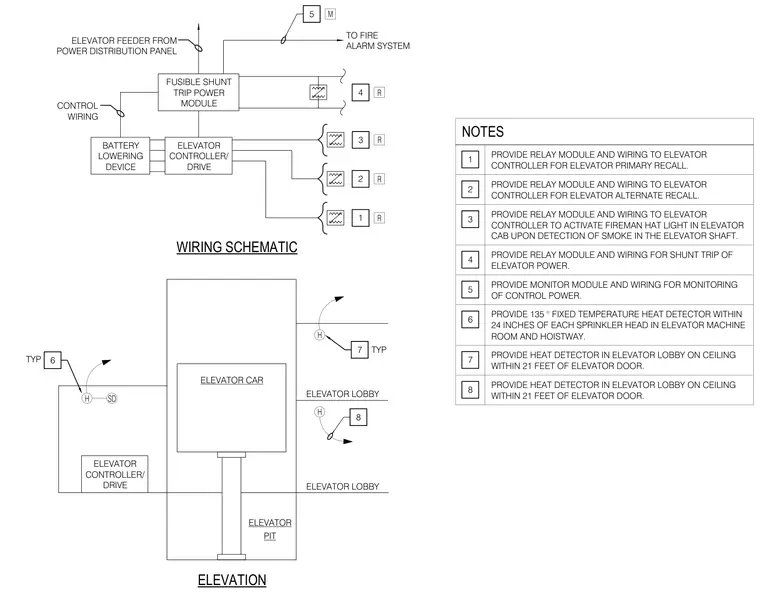

This diagram details the fire alarm system connections and electrical wiring for elevator recall and control operations. The schematic displays an elevator feeder connected from a power distribution panel to a fusible shunt trip power module, a battery lowering device, and the elevator controller or drive unit. Relay modules connect the system to the fire alarm system for primary recall, alternate recall, fireman hat light activation, and power shunt trip. Monitor modules provide control power monitoring. The elevation schematic indicates placement for fixed temperature heat detectors near sprinkler heads in the machine room and hoistway, as well as smoke and heat detectors in the elevator lobby.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
