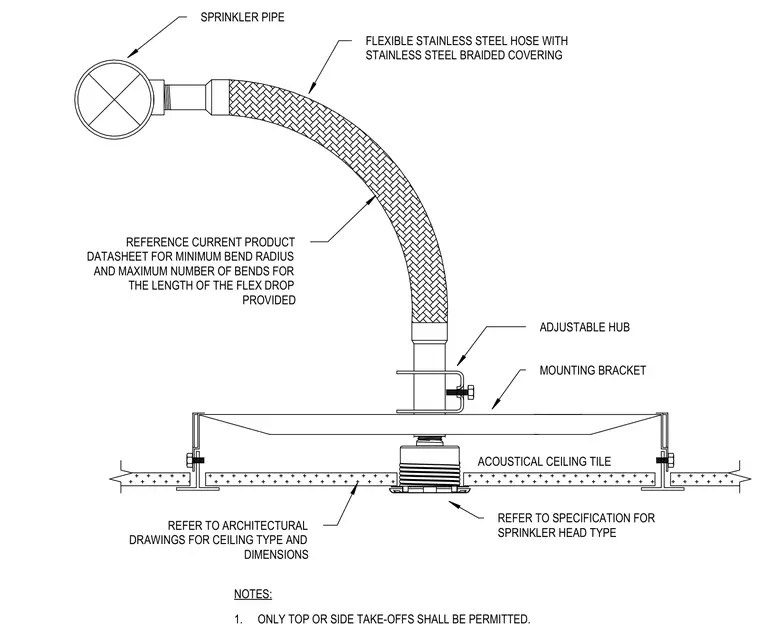

A flexible stainless steel hose with a braided stainless steel covering connects to the main sprinkler pipe via a top or side take-off. The lower end terminates at an adjustable hub secured to a mounting bracket spanning the acoustical ceiling tile suspension grid. The sprinkler head type is specified elsewhere, and the assembly adheres to product datasheet limits for minimum bend radius and maximum number of bends.
FLEXIBLE STAINLESS STEEL HOSE WITH STAINLESS STEEL BRAIDED COVERING ADJUSTABLE HUB MOUNTING BRACKET REFER TO SPECIFICATION FOR SPRINKLER HEAD TYPE REFER TO ARCHITECTURAL DRAWINGS FOR CEILING TYPE AND DIMENSIONS SPRINKLER PIPE REFERENCE CURRENT PRODUCT DATASHEET FOR MINIMUM BEND RADIUS AND MAXIMUM NUMBER OF BENDS FOR THE LENGTH OF THE FLEX DROP PROVIDED NOTES: 1. ONLY TOP OR SIDE TAKE-OFFS SHALL BE PERMITTED. ACOUSTICAL CEILING TILE
