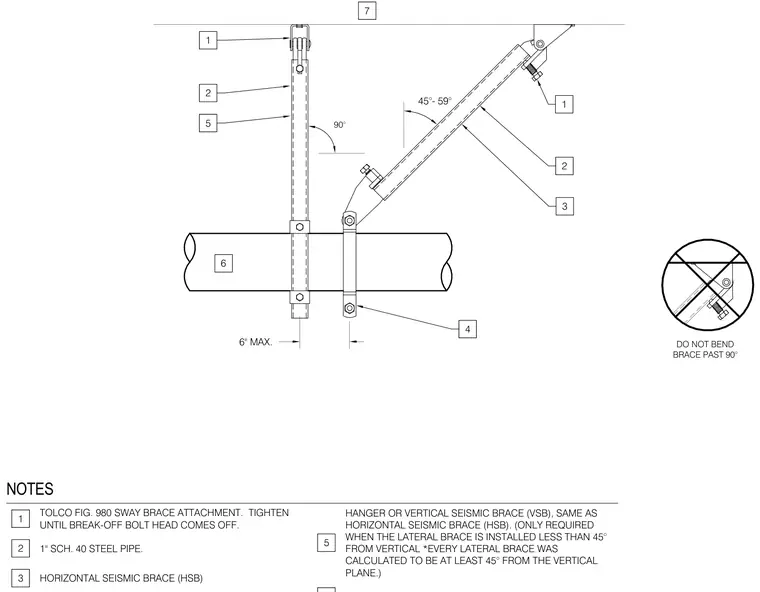

A longitudinal seismic brace assembly connects to the overhead structure. A Tolco Fig. 980 sway brace attachment secures a 1-inch schedule 40 steel pipe horizontal seismic brace. The break-off bolt head is tightened until sheared off. The diagonal brace is installed between forty-five and fifty-nine degrees from the vertical plane.
6" MAX. 4 3 2 1 1 2 5 1 2 3 5 45°- 59° 90° 6 7 DO NOT BEND BRACE PAST 90° NOTES TOLCO FIG. 980 SWAY BRACE ATTACHMENT. TIGHTEN UNTIL BREAK-OFF BOLT HEAD COMES OFF. 1" SCH. 40 STEEL PIPE. HORIZONTAL SEISMIC BRACE (HSB) HANGER OR VERTICAL SEISMIC BRACE (VSB), SAME AS HORIZONTAL SEISMIC BRACE (HSB). (ONLY REQUIRED WHEN THE LATERAL BRACE IS INSTALLED LESS THAN 45° FROM VERTICAL *EVERY LATERAL BRACE WAS CALCULATED TO BE AT LEAST 45° FROM THE VERTICAL PLANE.)
