Fire Protection · F-G85WC

Trapeze Hanger Detail

Materials

Elements

About this detail

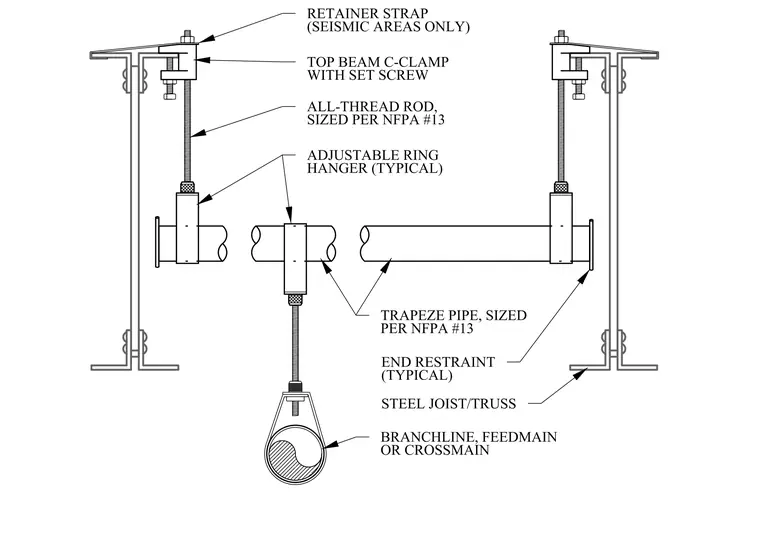

A trapeze pipe sized per NFPA 13 suspends from adjustable ring hangers threaded onto all-thread rods. The rods anchor to top beam C-clamps equipped with set screws and seismic retainer straps. Steel joists or trusses provide overhead structural support, with end restraints fitted at the pipe ends. A branchline, feedmain, or crossmain hangs below the trapeze assembly using an additional adjustable ring hanger.
