Structural · F-G75CT

Portable High Profile Davit Assembly

Elements

Connections

About this detail

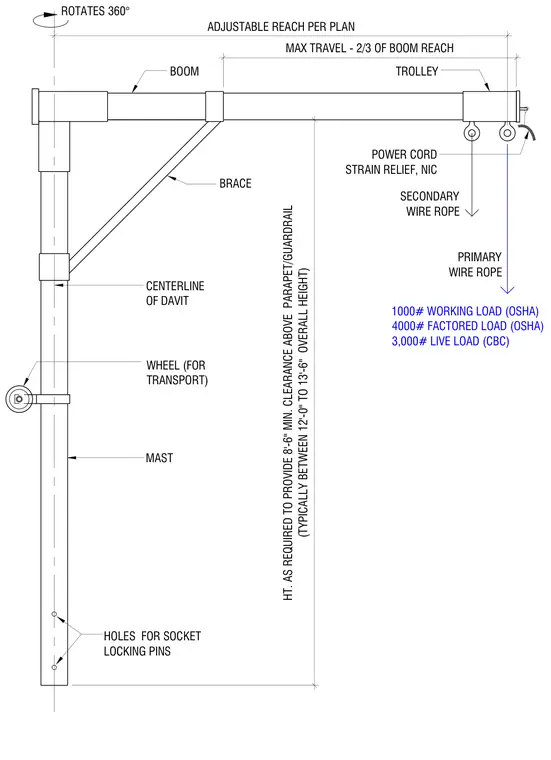

A portable high-profile davit features a vertical mast with transport wheels, a rotating 360-degree centerline, and lower holes for socket locking pins. An adjustable-reach boom extends horizontally, supported by an inclined brace and fitted with a trolley mechanism. Primary and secondary wire ropes drop from the boom alongside a power cord strain relief. The assembly is rated for a one thousand pound working load and a four thousand pound factored load per OSHA, alongside a three thousand pound live load per the California Building Code.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
