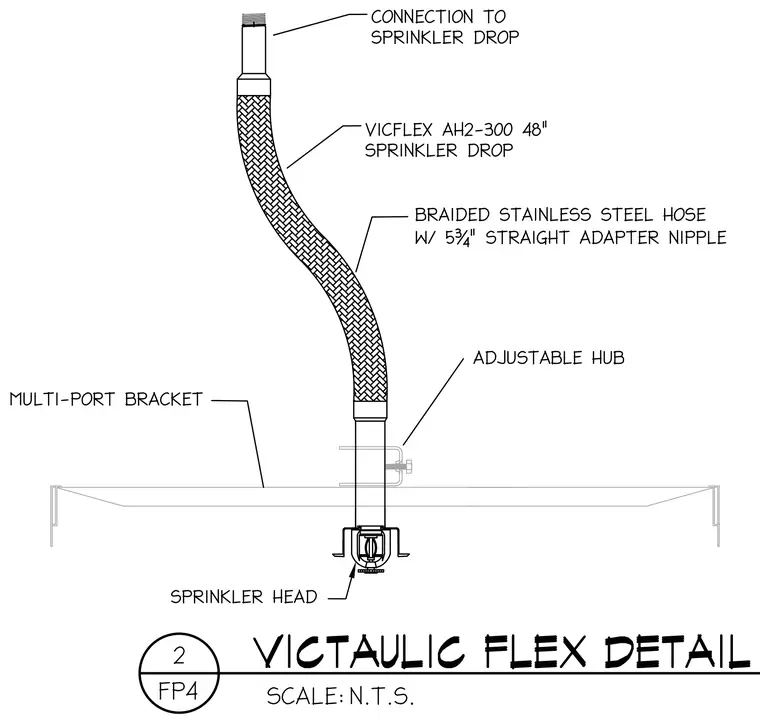

A flexible sprinkler drop assembly utilizes a Vicflex AH2-300 forty-eight inch braided stainless steel hose equipped with a five and three-quarter inch straight adapter nipple. The assembly connects at the top to the main sprinkler drop and terminates at the bottom with a sprinkler head. The drop is secured in position using an adjustable hub and a multi-port bracket.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
