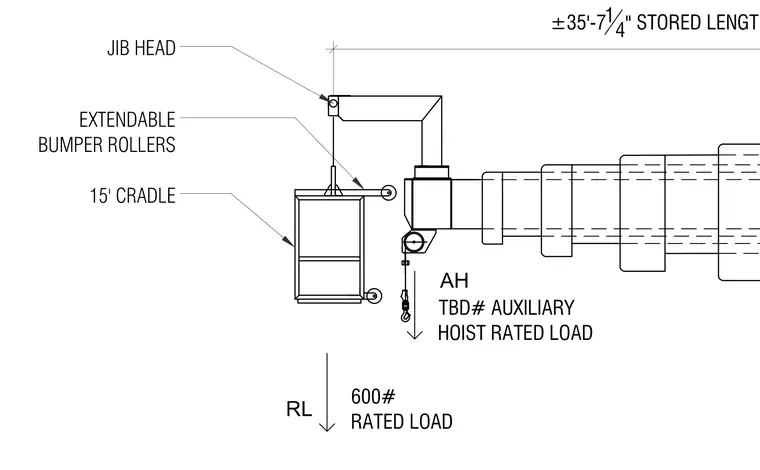

The assembly features a jib head supporting a fifteen-foot cradle fitted with extendable bumper rollers. An auxiliary hoist provides a rated load capacity of six hundred pounds with a stored length of approximately thirty-five feet, seven and a quarter inches and a minimum working reach of thirty-two feet, nine inches at a maximum fifteen-degree luffing.
±35'-714" STORED LENGTH (32'-9" MIN. REACH WORKING AT 15 MAX. LUFFING) TBD# AUXILIARY HOIST RATED LOAD 600# RATED LOAD JIB HEAD 15' CRADLE EXTENDABLE BUMPER ROLLERS
