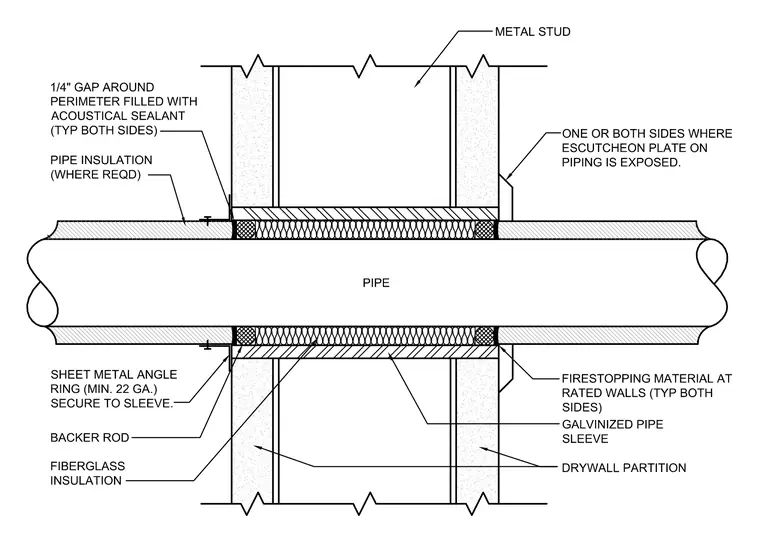

A galvanized pipe sleeve passes through a framed drywall partition with metal studs and gypsum board. The annular space contains fiberglass insulation wrapped around the pipe, backed by backer rod at both perimeters. A one-quarter-inch gap around the perimeter is filled with acoustical sealant on both sides. Firestopping material is applied at rated walls on both sides. A minimum twenty-two-gauge sheet metal angle ring is secured to the sleeve, and an optional escutcheon plate covers exposed areas on one or both sides where required.
BACKER ROD SHEET METAL ANGLE RING (MIN. 22 GA.) SECURE TO SLEEVE. PIPE INSULATION (WHERE REQD) METAL STUD ONE OR BOTH SIDES WHERE ESCUTCHEON PLATE ON PIPING IS EXPOSED. GALVINIZED PIPE SLEEVE DRYWALL PARTITION PIPE 1/4" GAP AROUND PERIMETER FILLED WITH ACOUSTICAL SEALANT (TYP BOTH SIDES) FIBERGLASS INSULATION FIRESTOPPING MATERIAL AT RATED WALLS (TYP BOTH SIDES)
