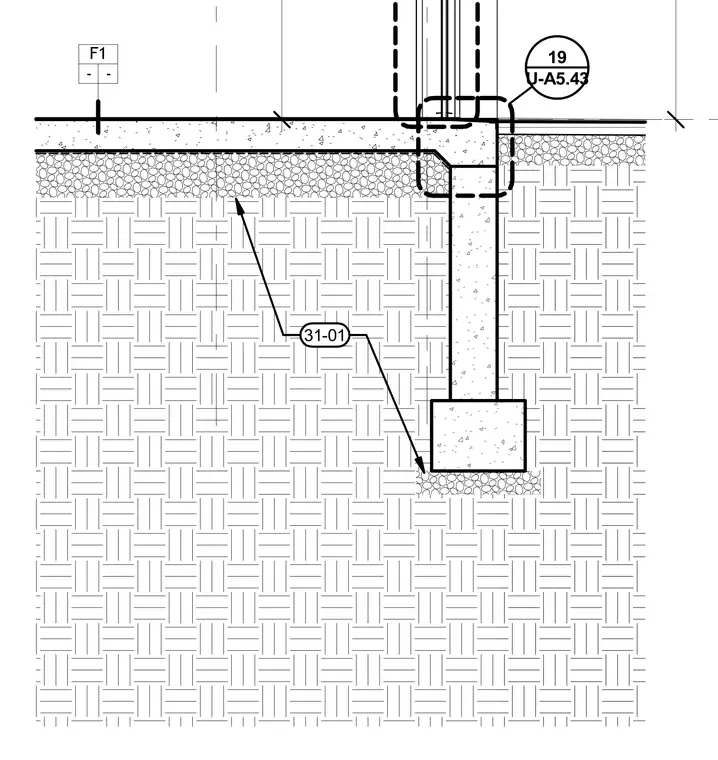

A reinforced concrete slab on grade bears directly on a concrete foundation wall and spread footing assembly. The subgrade beneath the slab is layered over compacted granular fill and native soil. A continuous wall section detail above transitions into the vertical wall assembly with designated connection callouts.
