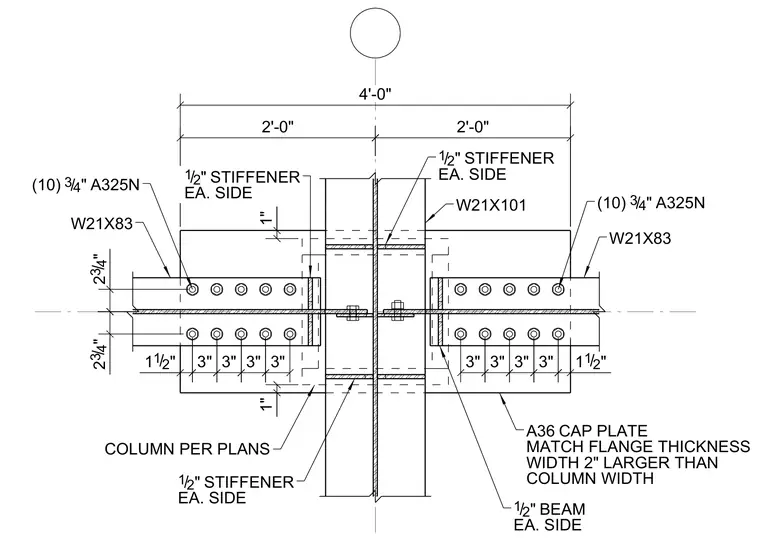

This connection plan details a W21X83 steel beam framing into a column per plans with an A36 cap plate matching the flange thickness and sized two inches larger than the column width. Ten three-quarter-inch A325N high-strength bolts secure each beam connection. One-half-inch stiffener plates are welded to each side of the column web aligned with the beam flanges. One-half-inch beam plates are also provided on each side of the beam web for the moment connection.
2 34 / " 4'-0" 2'-0" 2'-0" (10) 3 4 / " A325N (10) 3 4 / " A325N 12 / " BEAM EA. SIDE 12 / " STIFFENER EA. SIDE 12 / " STIFFENER EA. SIDE 12 / " STIFFENER EA. SIDE A36 CAP PLATE MATCH FLANGE THICKNESS WIDTH 2" LARGER THAN COLUMN WIDTH W21X83 W21X83 W21X101 COLUMN PER PLANS 3" 3" 3" 3" 2 34 / " 1 1 2 / " 1" 1" 3" 3" 3" 3" 1 1 2 / "
