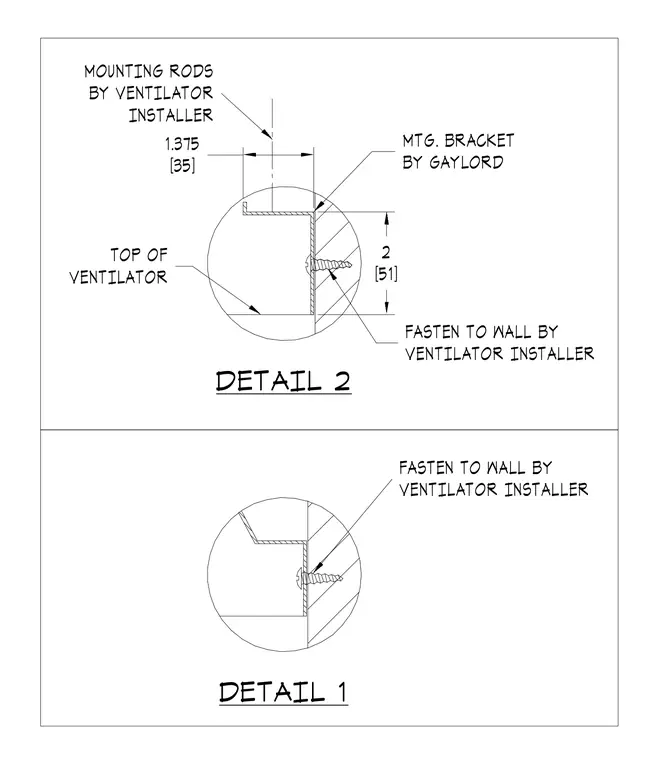

The mounting bracket is secured directly to the wall by the ventilator installer using mechanical fasteners. Mounting rods provided by the ventilator installer connect to the bracket assembly above the top of the ventilator.
2 [51] 1.375 [35] DETAIL 2 TOP OF VENTILATOR FASTEN TO WALL BY VENTILATOR INSTALLER MTG. BRACKET BY GAYLORD MOUNTING RODS BY VENTILATOR INSTALLER FASTEN TO WALL BY VENTILATOR INSTALLER DETAIL 1
