Fire Alarm Control Panel Audio Control and Evacuation Module

About this detail

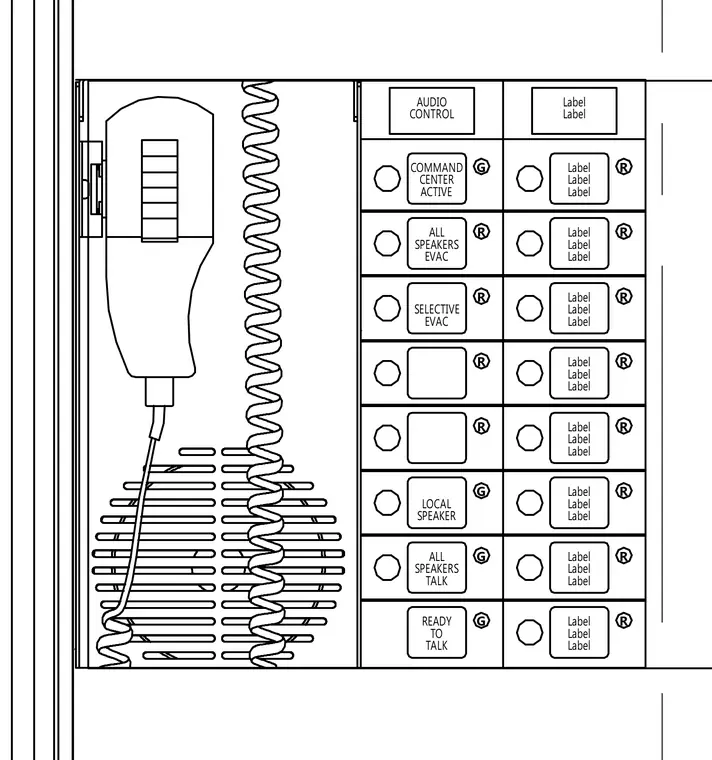

The audio control module layout includes a handheld microphone with a coiled cord mounted on the left side alongside ventilation slots. The control interface features labeled buttons and indicator lights for command center active, all speakers evacuation, selective evacuation, local speaker, all speakers talk, and ready to talk functions. Status indicators use green and red designated status markers alongside configurable label fields.
