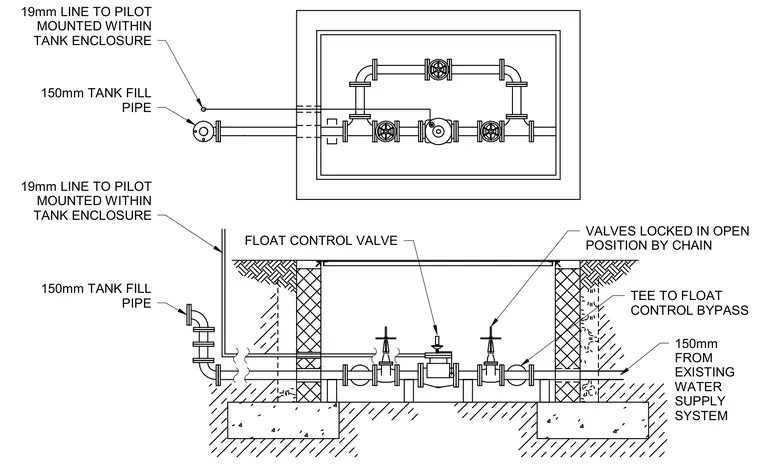

A one hundred fifty millimeter tank fill pipe connects to the existing water supply system and enters the vault, feeding a float control valve assembly with isolation valves locked in the open position by chain. A tee branches to a float control bypass line, and a nineteen millimeter line connects to the pilot mounted within the tank enclosure. The piping arrangement includes flanged valves and fittings supported inside the concrete vault structure.
FLOAT CONTROL VALVE VALVES LOCKED IN OPEN POSITION BY CHAIN TEE TO FLOAT CONTROL BYPASS 150mm FROM EXISTING WATER SUPPLY SYSTEM 19mm LINE TO PILOT MOUNTED WITHIN TANK ENCLOSURE 150mm TANK FILL PIPE 150mm TANK FILL PIPE 19mm LINE TO PILOT MOUNTED WITHIN TANK ENCLOSURE
