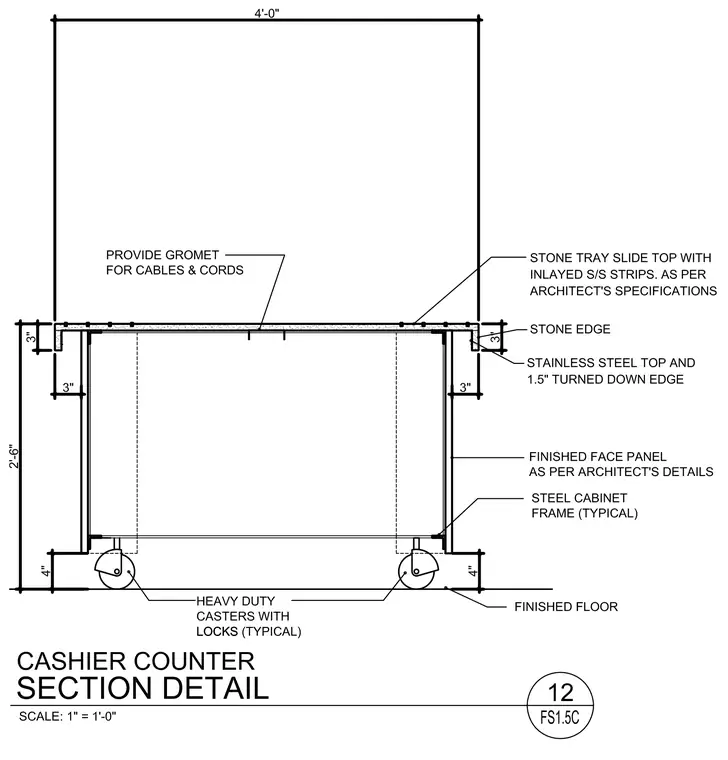

The assembly consists of a structural steel cabinet frame supported by heavy-duty casters with locks bearing on the finished floor. The top features a stainless steel surface with a one-and-a-half-inch turned down edge and a stone tray slide top incorporating inlayed stainless steel strips and a stone edge. A grommet is provided in the counter for cables and cords, and finished face panels clad the exterior of the steel frame per the architect's details.
