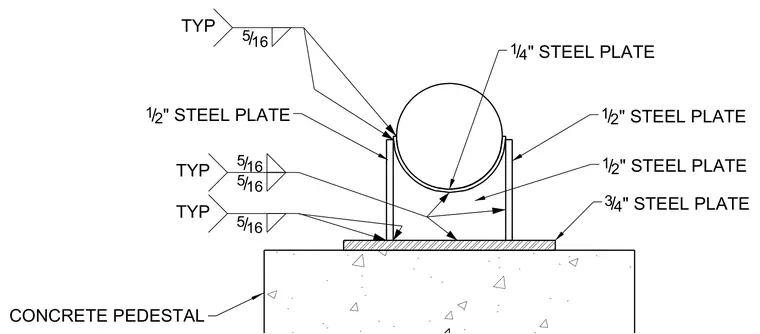

A cylindrical pipe rests on a curved one-quarter-inch steel plate cradle supported by one-half-inch vertical steel plates. The vertical plates are welded to a three-quarter-inch base steel plate with typical five-sixteenth-inch fillet welds. The entire steel assembly is anchored to a concrete pedestal.
CONCRETE PEDESTAL 516 / TYP 516 / TYP 516 / 516 / TYP 34 / " STEEL PLATE 14 / " STEEL PLATE 12 / " STEEL PLATE 12 / " STEEL PLATE 12 / " STEEL PLATE
