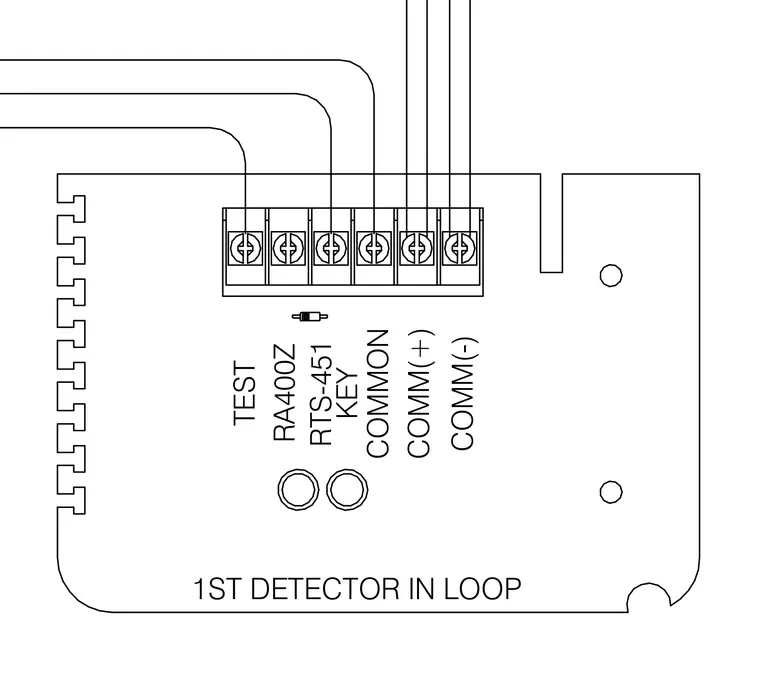

Wiring connections for the first duct smoke detector in a loop include test, RA400Z remote annunciator, RTS-451 key, common, and positive/negative communication lines terminated at the screw block. Circuit conductors interface directly with the device terminals as labeled on the housing.
