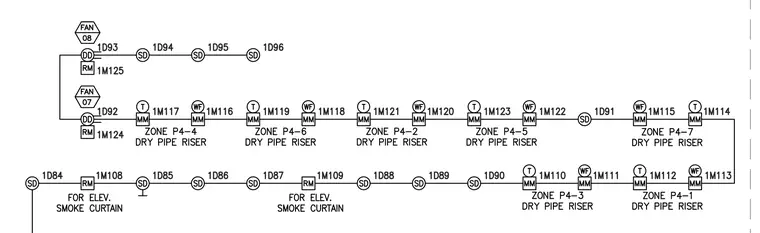

This fire protection schematic details dry pipe risers and associated monitoring devices, smoke detectors, and exhaust fans. Fan 07 and Fan 08 connect to duct smoke detectors and relay modules. Multiple dry pipe riser zones including Zone P4-1 through P4-7 incorporate waterflow switches, tamper switches, and monitor modules with specific identification tags. Additional branches feed smoke curtain connections with relay modules and smoke detectors.
