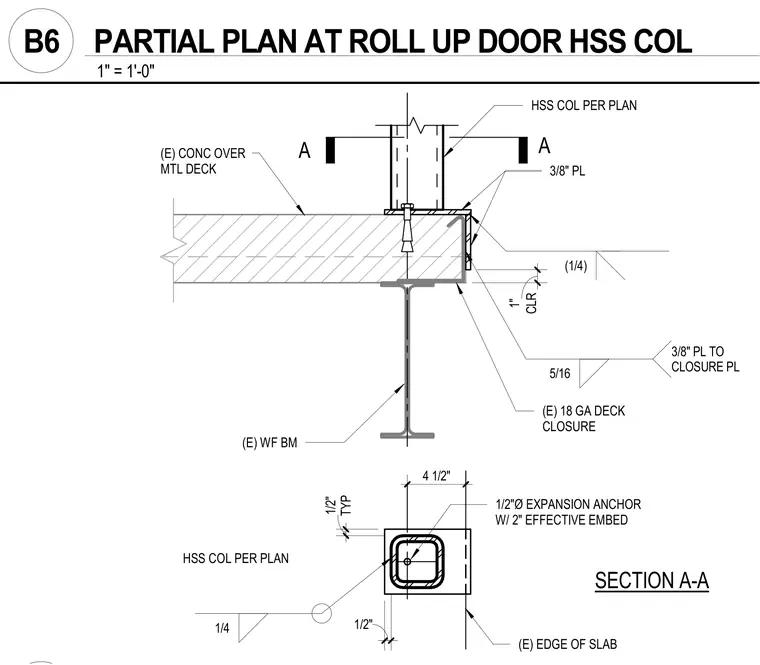

An existing hollow structural section column bears on a three-eighths-inch plate secured to a concrete slab over metal deck, anchored with a half-inch diameter expansion anchor having a two-inch effective embedment. An existing wide-flange beam supports the assembly near the edge of the slab. An existing eighteen-gauge metal deck closure plate is welded to a three-eighths-inch plate with a five-sixteenths fillet weld, maintaining a one-inch clearance. Section A-A details the column base orientation, edge distance dimensions of four and a half inches, and a quarter-inch weld configuration.
(E) WF BM (E) CONC OVER MTL DECK HSS COL PER PLAN 5/16 3/8" PL TO CLOSURE PL 1/4 4 1/2" TYP 1/2" 1/2" (E) EDGE OF SLAB 1/2"Ø EXPANSION ANCHOR W/ 2" EFFECTIVE EMBED CLR 1" (E) 18 GA DECK CLOSURE 3/8" PL (1/4) HSS COL PER PLAN A A SECTION A-A 1" = 1'-0" B6 PARTIAL PLAN AT ROLL UP DOOR HSS COL
