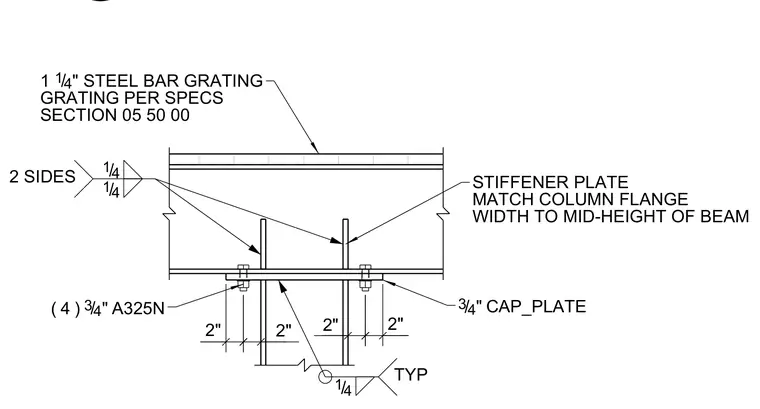

A structural steel connection secures a channel and bar grating assembly atop a vertical column. One-and-a-quarter-inch steel bar grating spans the top, conforming to section 05 50 00 specifications. A three-quarter-inch cap plate connects to the support below using four three-quarter-inch A325N bolts with typical two-inch spacings. Stiffener plates matching the column flange width extend up to the mid-height of the beam and are welded with quarter-inch fillet welds on two sides.
14 / 14 / 2 SIDES 14 / TYP 2" 2" 2" 2" 1 1 4 / " STEEL BAR GRATING GRATING PER SPECS SECTION 05 50 00 ( 4 ) 3 4 / " A325N STIFFENER PLATE MATCH COLUMN FLANGE WIDTH TO MID-HEIGHT OF BEAM 34 / " CAP_PLATE
