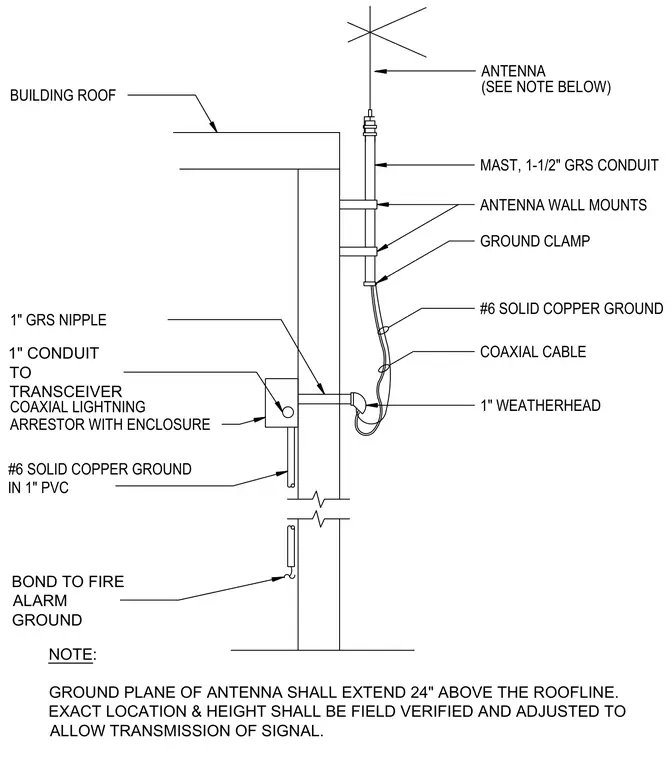

An antenna is mounted to the exterior wall using antenna wall mounts and supported by a 1-1/2 inch galvanized rigid steel conduit mast extending above the building roofline. A coaxial cable runs from the antenna through a 1 inch weatherhead and 1 inch galvanized rigid steel conduit nipple to a coaxial lightning arrestor with enclosure. A number 6 solid copper ground wire attaches to the mast with a ground clamp and extends down through a 1 inch PVC conduit to bond to the fire alarm ground. The ground plane of the antenna extends 24 inches above the roofline with exact location and height field verified.
(SEE NOTE BELOW) ANTENNA ANTENNA WALL MOUNTS GROUND CLAMP #6 SOLID COPPER GROUND MAST, 1-1/2" GRS CONDUIT COAXIAL CABLE 1" WEATHERHEAD IN 1" PVC #6 SOLID COPPER GROUND COAXIAL LIGHTNING ARRESTOR WITH ENCLOSURE BOND TO FIRE ALARM GROUND BUILDING ROOF 1" GRS NIPPLE 1" CONDUIT TO TRANSCEIVER NOTE: GROUND PLANE OF ANTENNA SHALL EXTEND 24" ABOVE THE ROOFLINE. EXACT LOCATION & HEIGHT SHALL BE FIELD VERIFIED AND ADJUSTED TO ALLOW TRANSMISSION OF SIGNAL.
