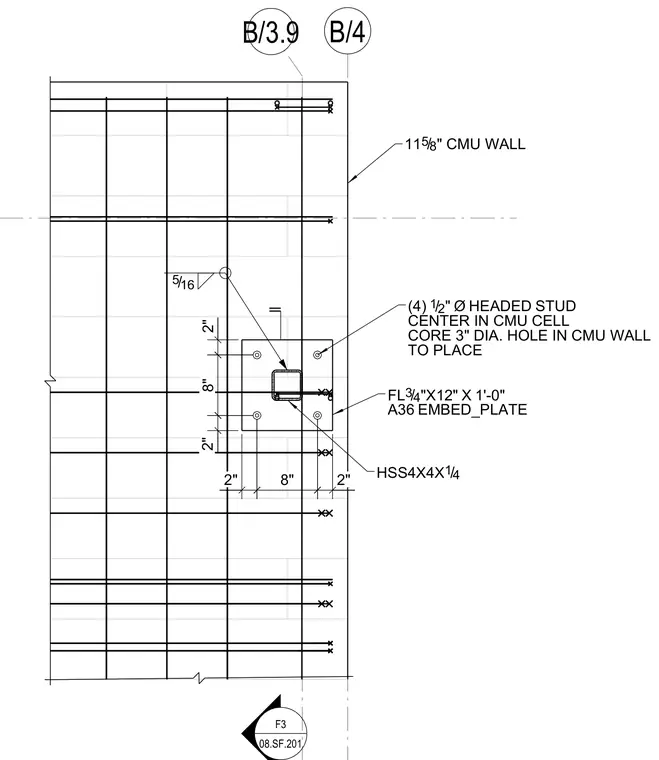

An HSS4x4x1/4 hollow structural section column frames into a three-quarter-inch by twelve-inch by one-foot-zero-inch A36 steel embed plate anchored within an eleven and five-eighths-inch concrete masonry unit wall. Four one-half-inch diameter headed studs center in the concrete masonry unit cell cores, utilizing a three-inch diameter hole in the masonry wall for placement. A five-sixteenths fillet weld secures the hollow structural section to the embed plate.
B/4 B/3.9 2" 8" 2" 2" 8" 2" 11 5 8 / " CMU WALL (4) 1 2 / " Ø HEADED STUD CENTER IN CMU CELL CORE 3" DIA. HOLE IN CMU WALL TO PLACE FL 3 4 / "X12" X 1'-0" A36 EMBED_PLATE HSS4X4X 1 4 / 516 / F3 08.SF.201
